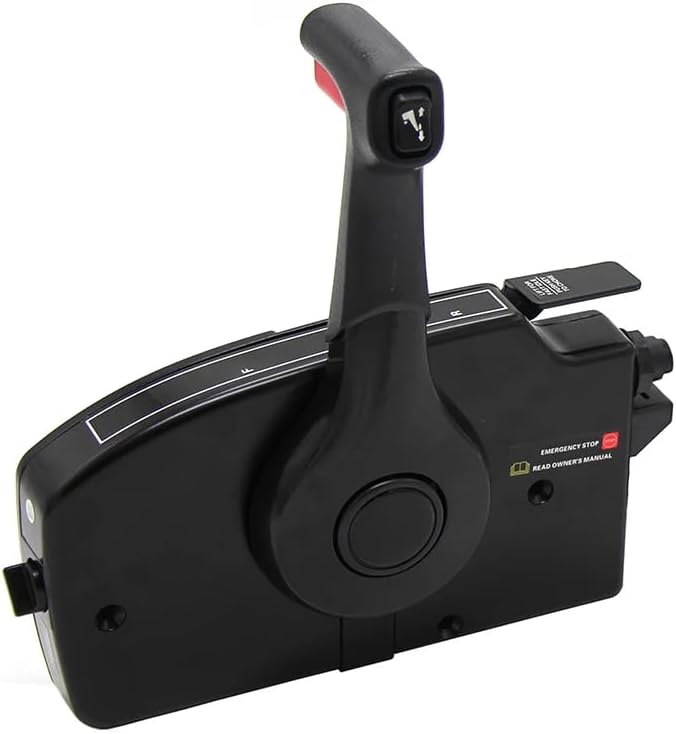

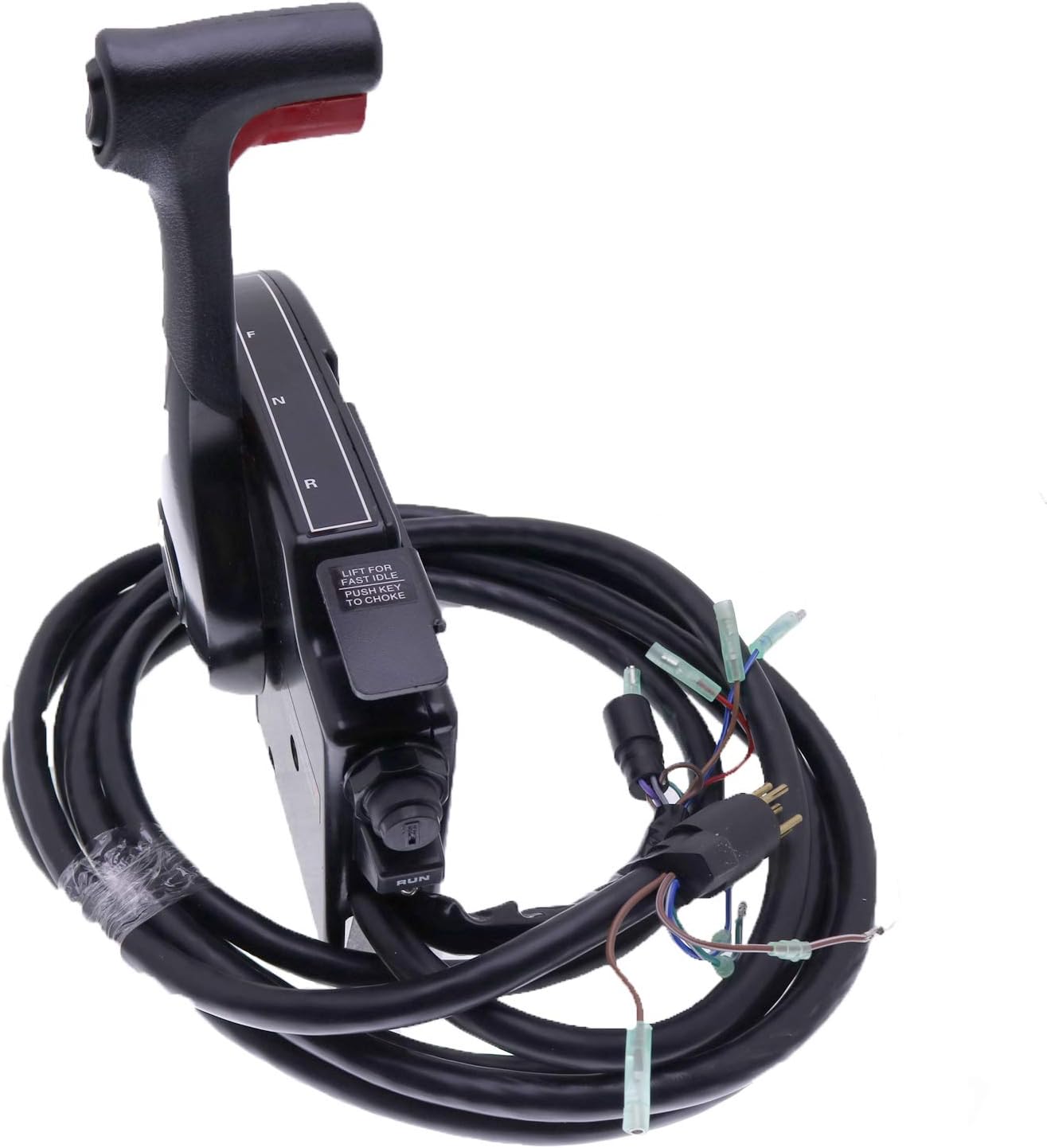

881170A15 Boat Outboard Side Mount Remote Control Box with 8 Pin Fit for Mercury Engine

Product Description

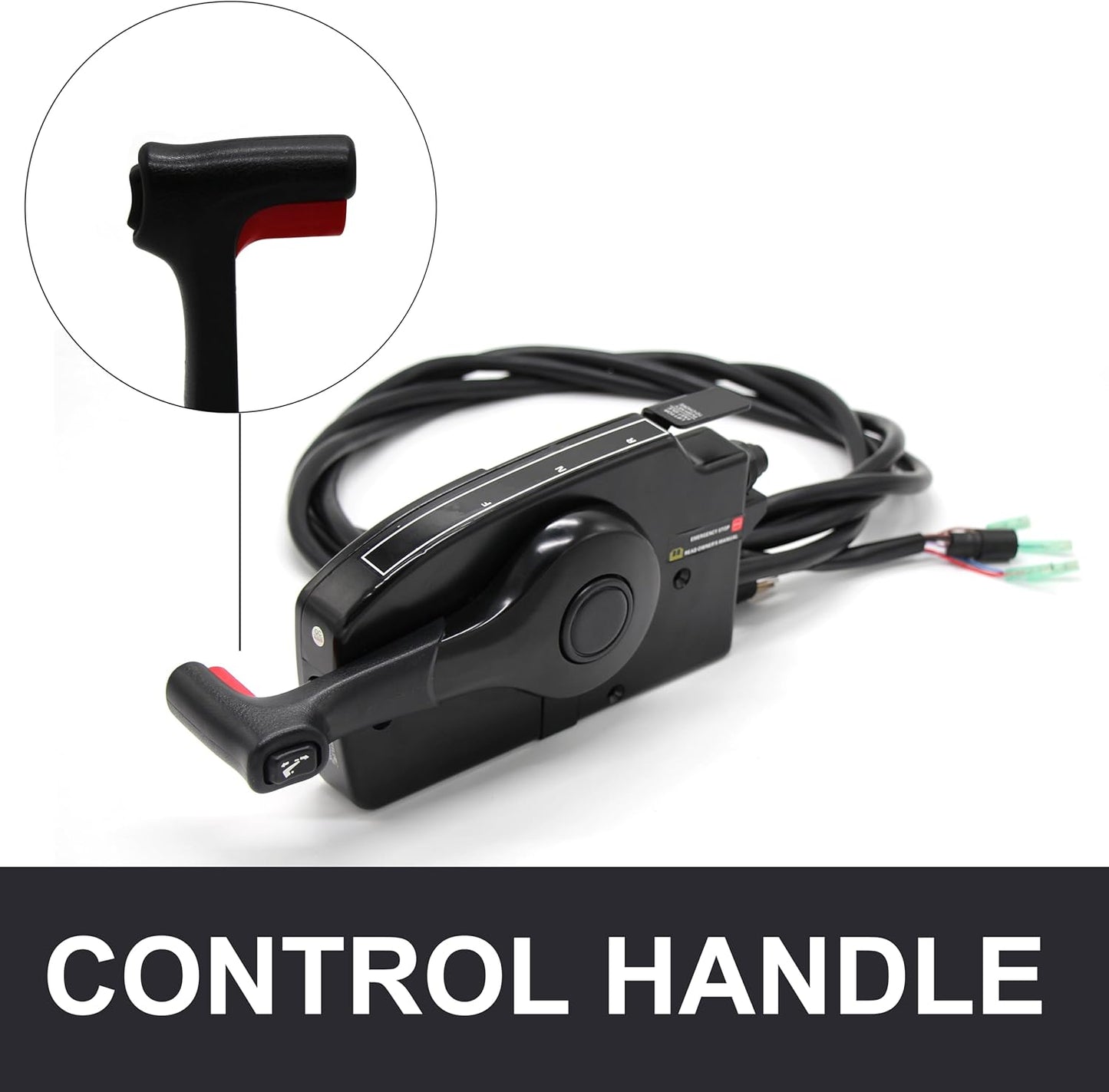

• Control handle: Lift the neutral lock release and shift into gear with a firm, quick motion. Approximately the first 32° of control handle travel (from neutral position) will shift the gears, the remainder of control handle travel advances the throttle
• Neutral lock release: The neutral lock prevents accidental shifting of the remote control from the neutral position. The neutral lock release must be lifted to shift the remote control.

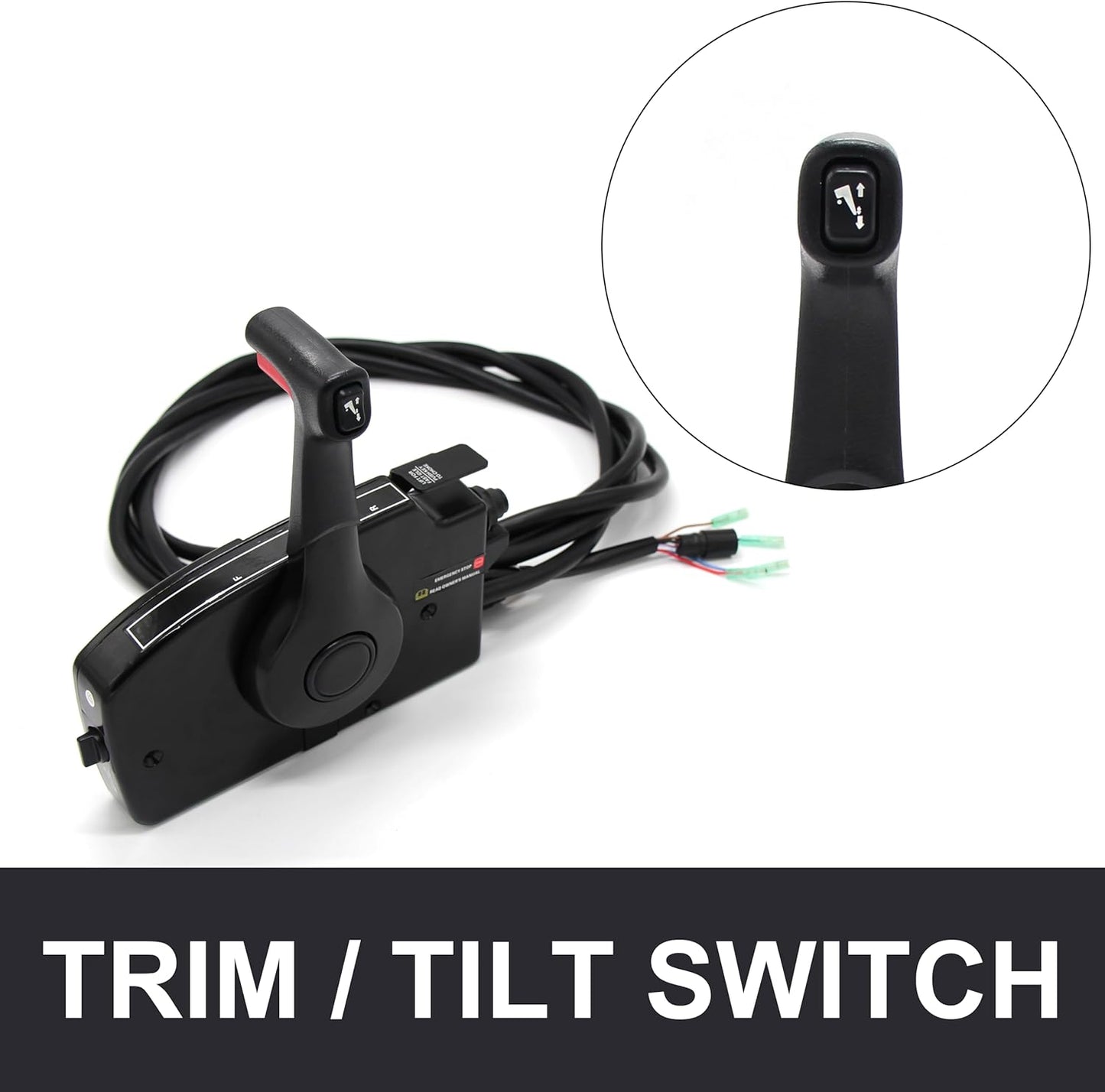

• Trim switch: Used to trim engine and raise engine to desired height for trailering or shallow water operation.

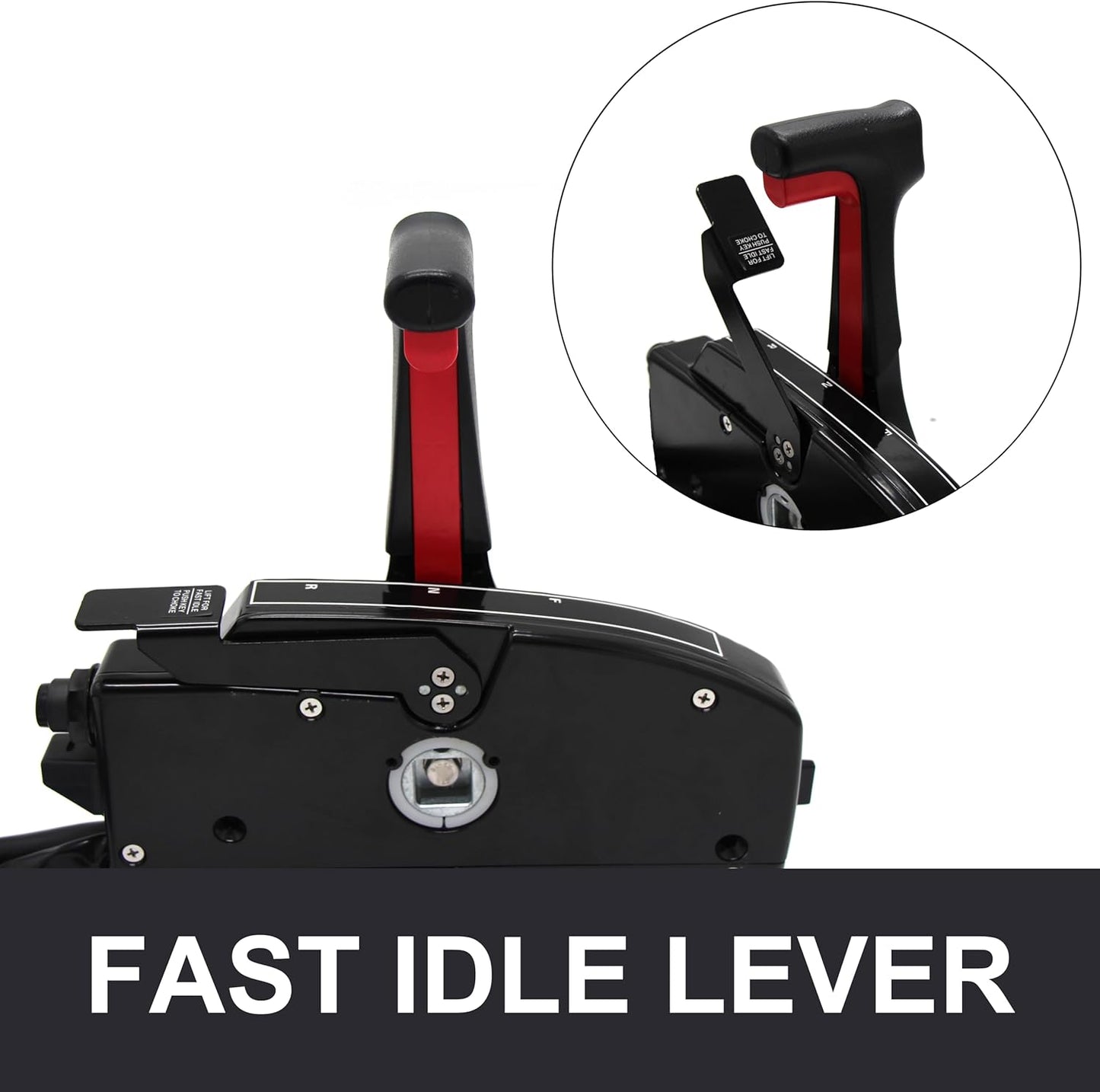

• Fast idle lever: Assists in starting a cold engine (with carburetors). When the engine is cold, place control handle in neutral and lift the lever. This provides a higher RPM for starting a cold engine. The fast idle lever can be lifted only when the control handle is in neutral.

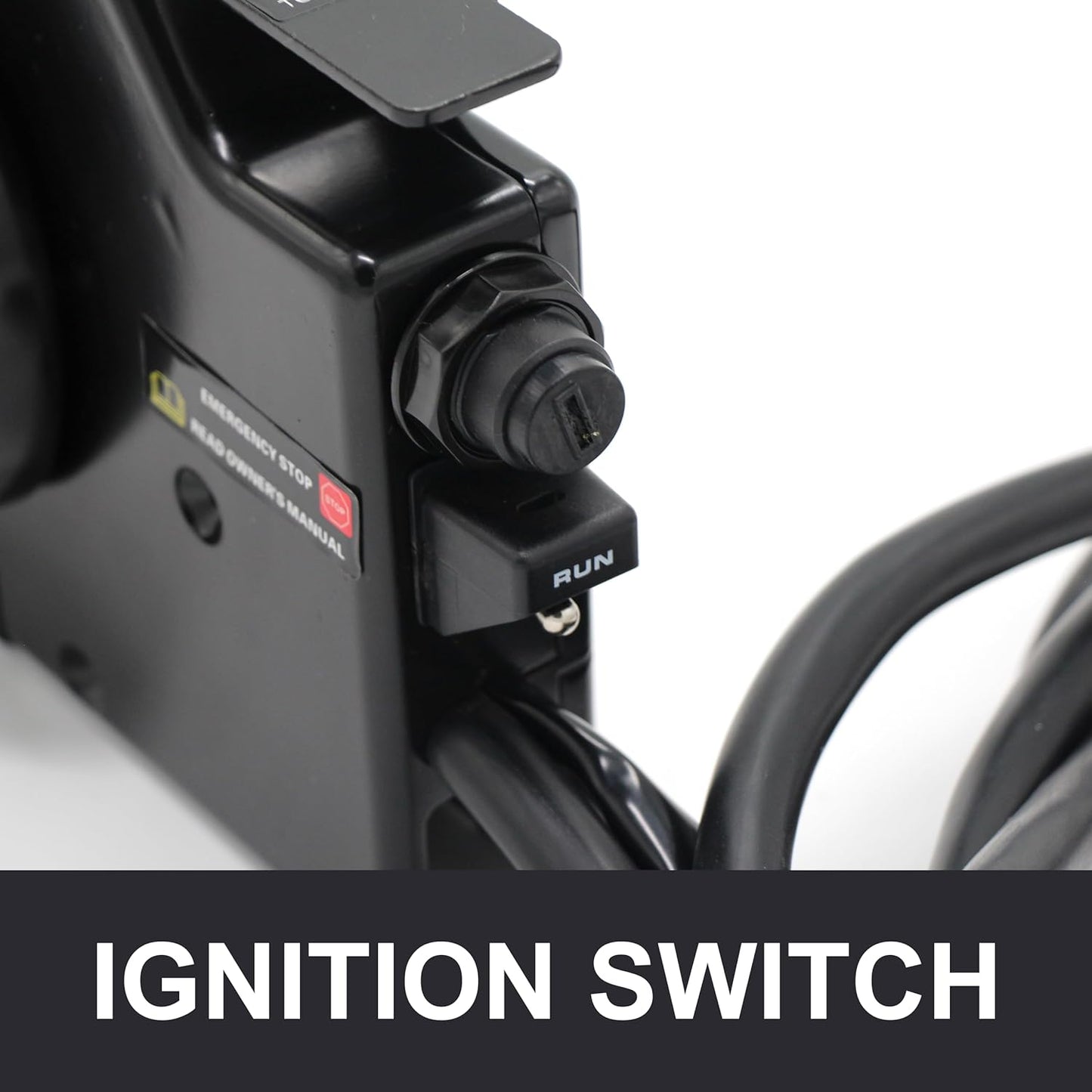

• Ignition / choke switch : Start the engine by turning the ignition keWith16.5FT 8PIN
• Throttle Cable GEN I y clockwise to the START position . On models that have a choke , pushing the ignition key in will actuate the choke . Release the ignition key and allow the switch to return to the " RUN' position . Stop the engine by turning the ignition key counterclockwise to the " OFF position
• Throttle friction adjustment knob : Adjust throttle friction by turning the knob clockwise to increase friction , or counterclockwise to decrease friction
• Tachometer wiring harness receptacle : Provides a convenient connection for tachometer / instrumentation hook up
• Lanyard stop switch: The purpose of a lanyard stop switch is to turn off the engine when the operator moves far enough away from the operator's position (as in accidental ejection from the operator's position) to activate the switch.

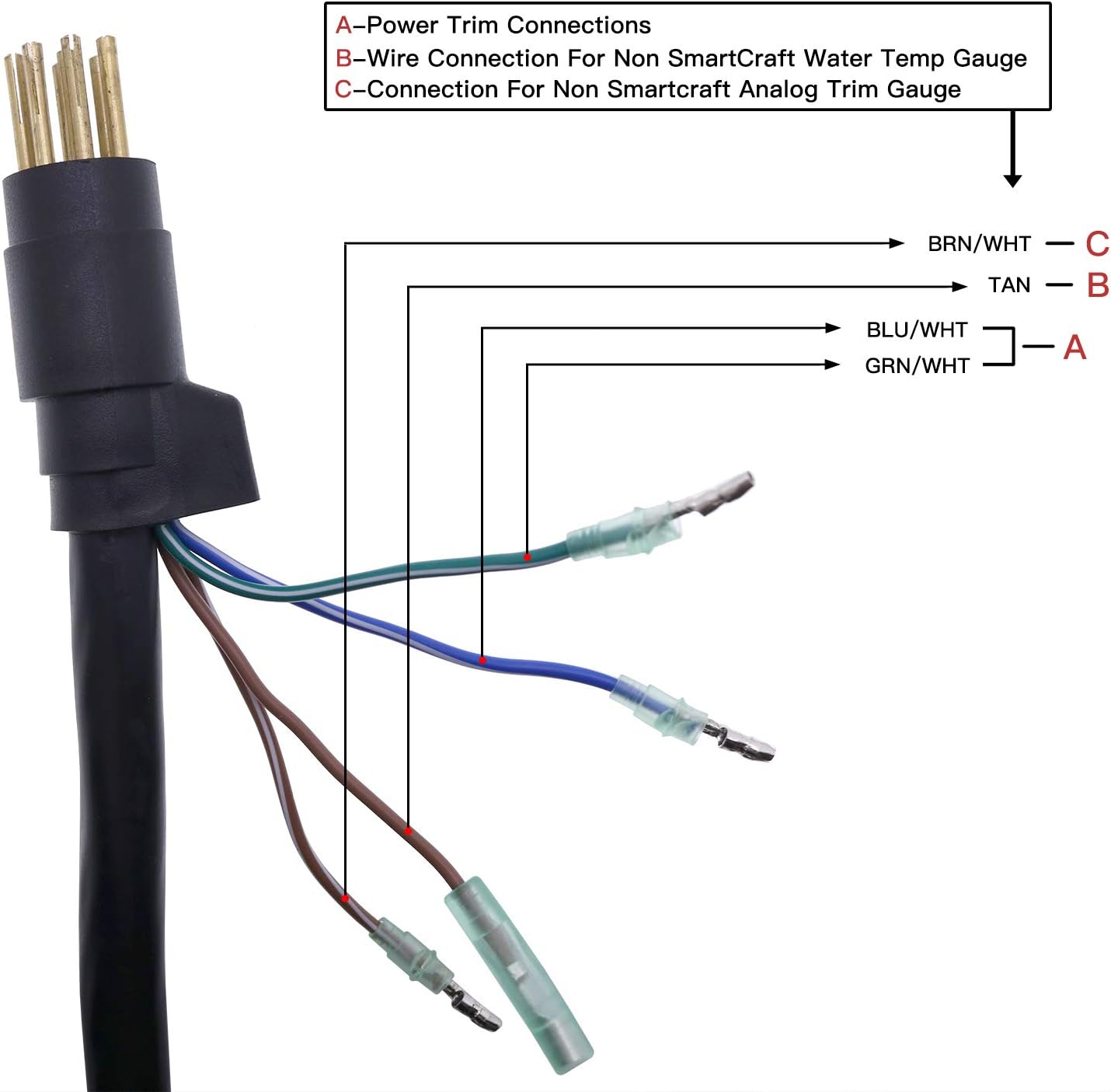

• Power Trim Switch

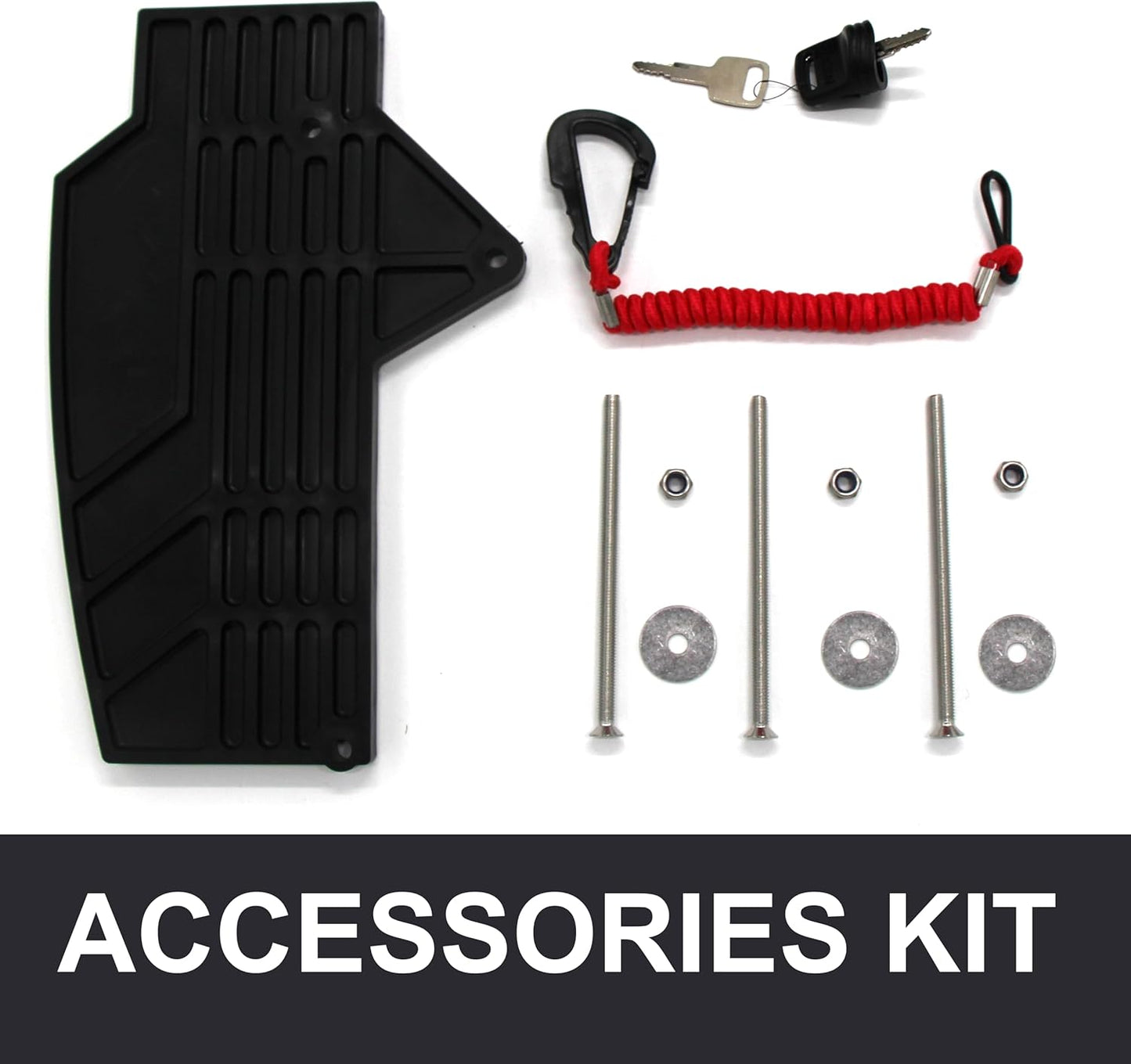

• Install Accessory Package

This Mercury 881170A15 Control Box Side Mount Outboard fits the following models and components:

• Mercury Inflatable Boats 2006 Amanzi 320 Hypalon RIB ZA-GAH20001H304 & Up Remote Control Components
• Mercury Inflatable Boats 2005 Amanzi 380 Hypalon RIB ZA-GAH10001H304 & Up Remote Control Components
• Mercury Inflatable Boats 2005 Amanzi 320 Hypalon RIB ZA-GAH20001H304 & Up Remote Control Components
• Mercury Inflatable Boats 2004 Amanzi 320 Hypalon RIB ZA-GAH20001H304 & Up Remote Control Components
• Mercury Inflatable Boats 2006 Amanzi 380 Hypalon RIB ZA-GAH10001H304 & Up Remote Control Components
• Mercury Inflatable Boats 2004 Amanzi 380 Hypalon RIB ZA-GAH10001H304 & Up Remote Control Components
• Mercury Sportjet Rigging Parts & Accessories Remote Controls and Components Side Mount Control Box Remote Control-4000 Side Mount(Power Trim)
• Mercruiser Rigging Parts & Accessories Remote Controls and Components Side Mount Control Box Remote Control-4000 Side Mount(Power Trim)
• Mercury Rigging Parts & Accessories Remote Controls and Components Side Mount Control Box Remote Control-4000 Side Mount(Power Trim)
• Force Rigging Parts & Accessories Remote Controls and Components Side Mount Control Box Remote Control-4000 Side Mount(Power Trim)
• Mercury Inflatable Boats 2006 Amanzi 320 Hypalon RIB ZA-GAH20001H304 & Up Steering / Control / Electrical Components
• Mercury Inflatable Boats 2005 Amanzi 380 Hypalon RIB ZA-GAH10001H304 & Up Steering / Control / Electrical Components
• Mercury Inflatable Boats 2005 Amanzi 320 Hypalon RIB ZA-GAH20001H304 & Up Steering / Control / Electrical Components
• Mercury Inflatable Boats 2004 Amanzi 320 Hypalon RIB ZA-GAH20001H304 & Up Steering / Control / Electrical Components
• Mercury Inflatable Boats 2006 Amanzi 380 Hypalon RIB ZA-GAH10001H304 & Up Steering / Control / Electrical Components
• Mercury Inflatable Boats 2004 Amanzi 380 Hypalon RIB ZA-GAH10001H304 & Up Steering / Control / Electrical Components
