Winibo ZA0301 Boat Hydraulic Steering Kit for Outboard up to 90HP
Couldn't load pickup availability
Helm Mounted Hydraulic steering systems provide precise control during operation, allowing for smooth, accurate maneuvering. They are designed to be reliable and highly efficient for Boats.
Compatible with such brands as Yamaha, Suzuki, Honda, Mercury, Nissan, Tohatsu, and more!
- 16 cc per revolution Compact helm Pump.

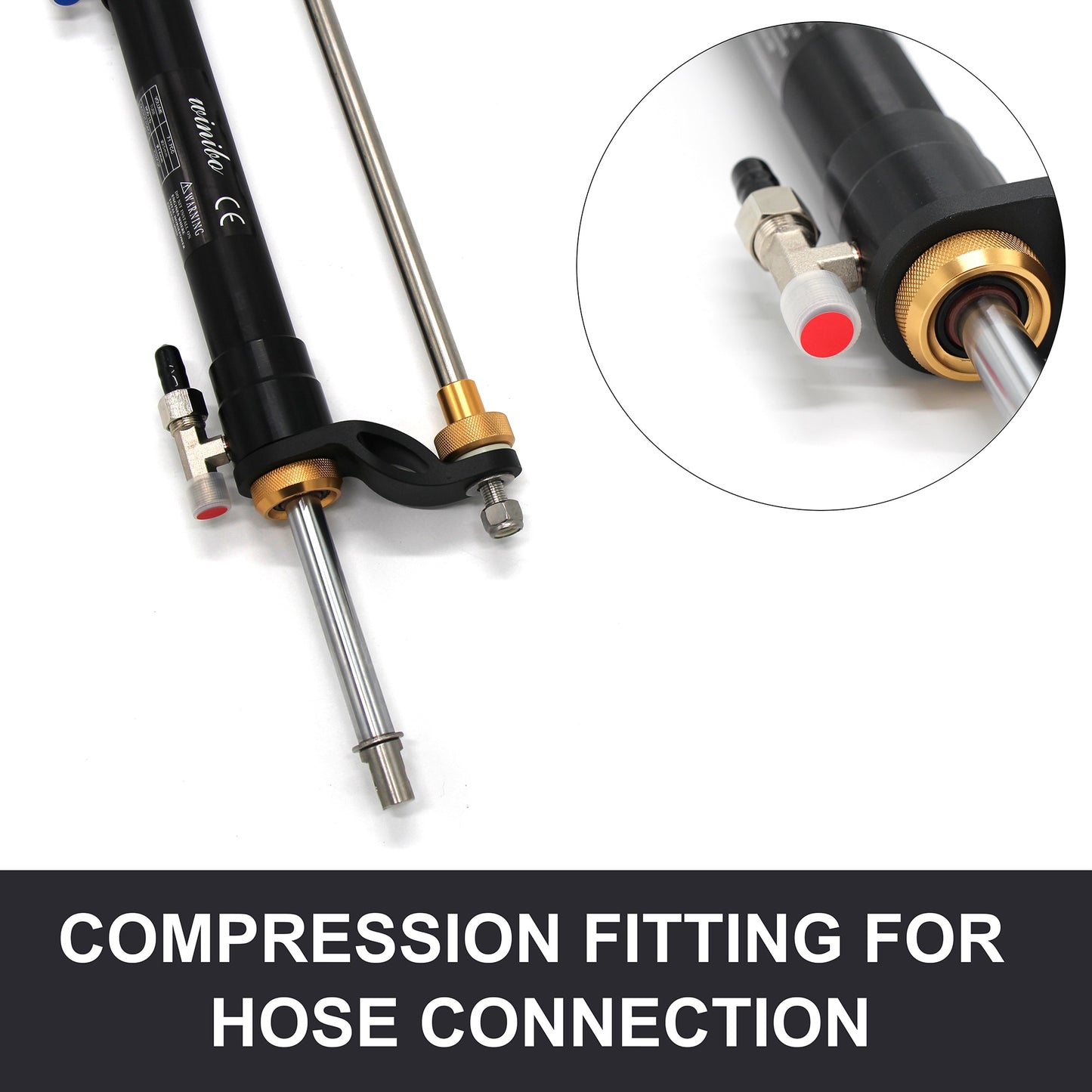

- ORB fittings are adjustable for convenient setup and can be reoriented after installation.
- Unique gasket design to make the helm pump very easy to be mounted
- The tube kit length can be freely cut

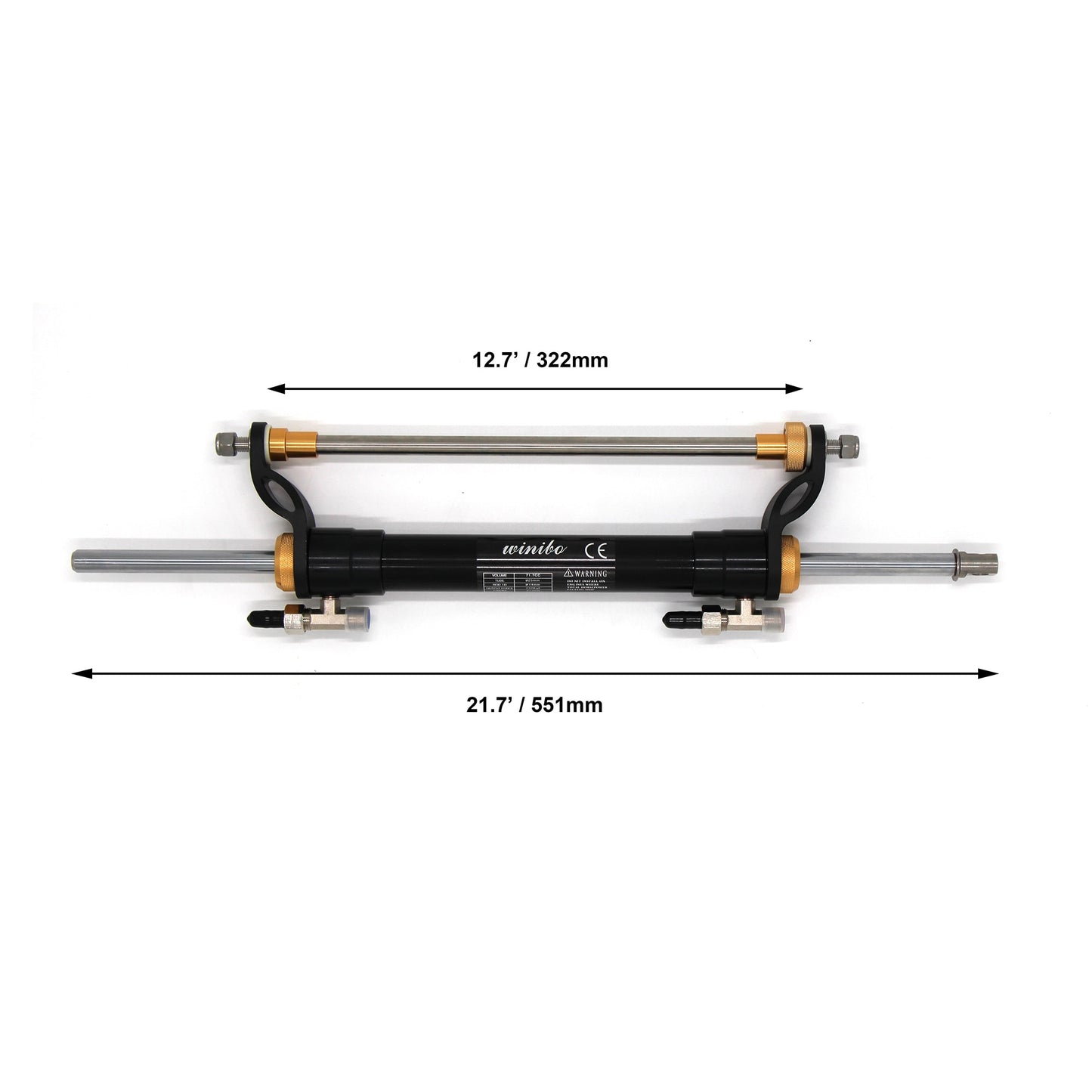

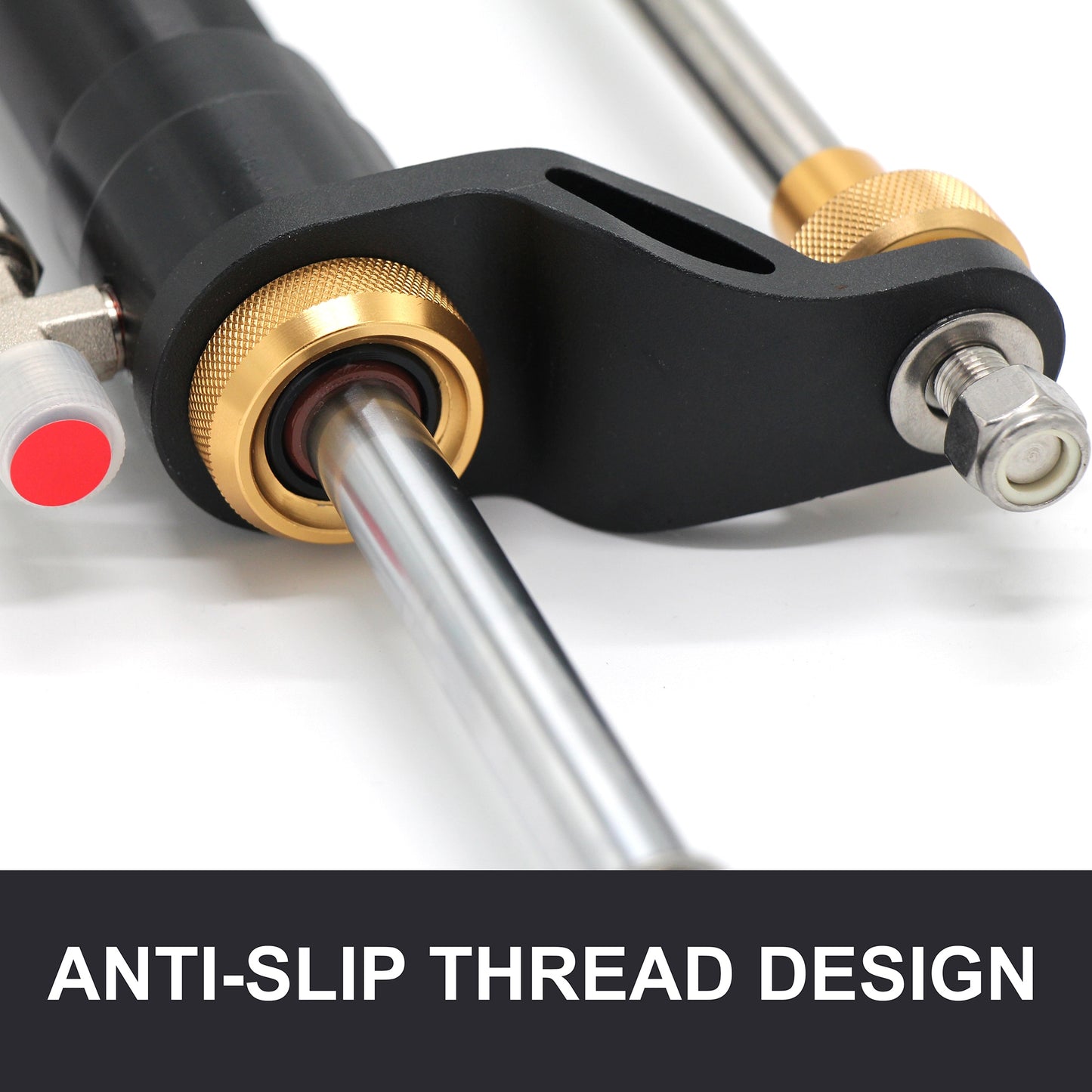

- Front-mounted cylinder made in high resistance stainless steel
- 24 Foot of quality Hydraulic hose, Top mounted pump, and a ¾” tapered steering wheel shaft.
Q&A:
1. What oils are recommended?
We recommend using a hydraulic fluid with a viscosity between #10 and #15. Excessive viscosity will affect the use of the hydraulic cylinders, so do not use hydraulic cylinders with excessive viscosity.
2. Does this steering system work on motors over 100 hp?
This product is intended for use on 90 horsepower machines. If used on a 100 horsepower machine, a safety hazard may occur.
1. Excessive pressure causes deformation of the hydraulic cylinder.
2. Pump is unable to withstand fluid pressure and is damaged.
3. o-rings leak due to excessive pressure. All three of these can cause inefficiencies and hazards in the steering system.
3. What does the product consist of? What is the length of the hose?

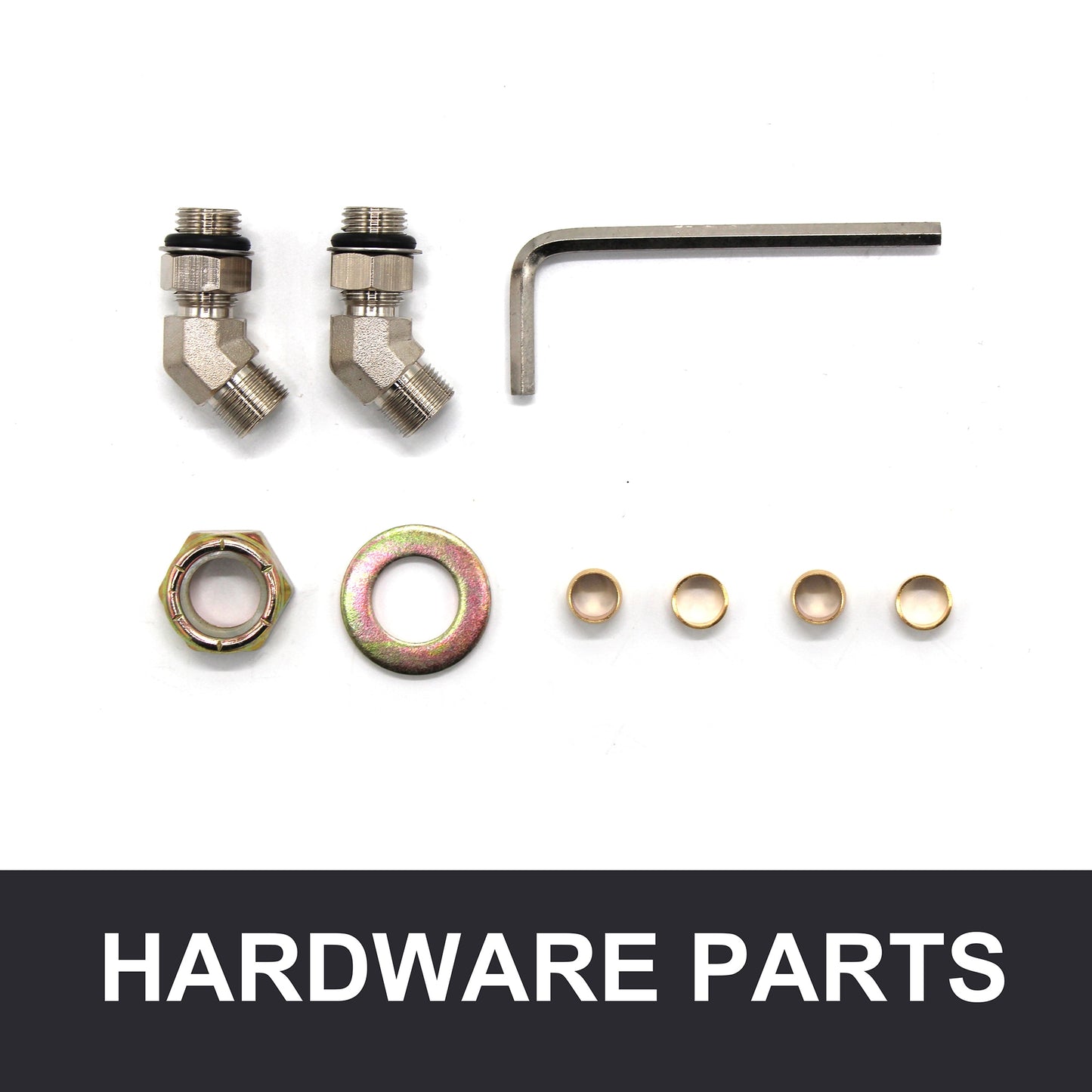

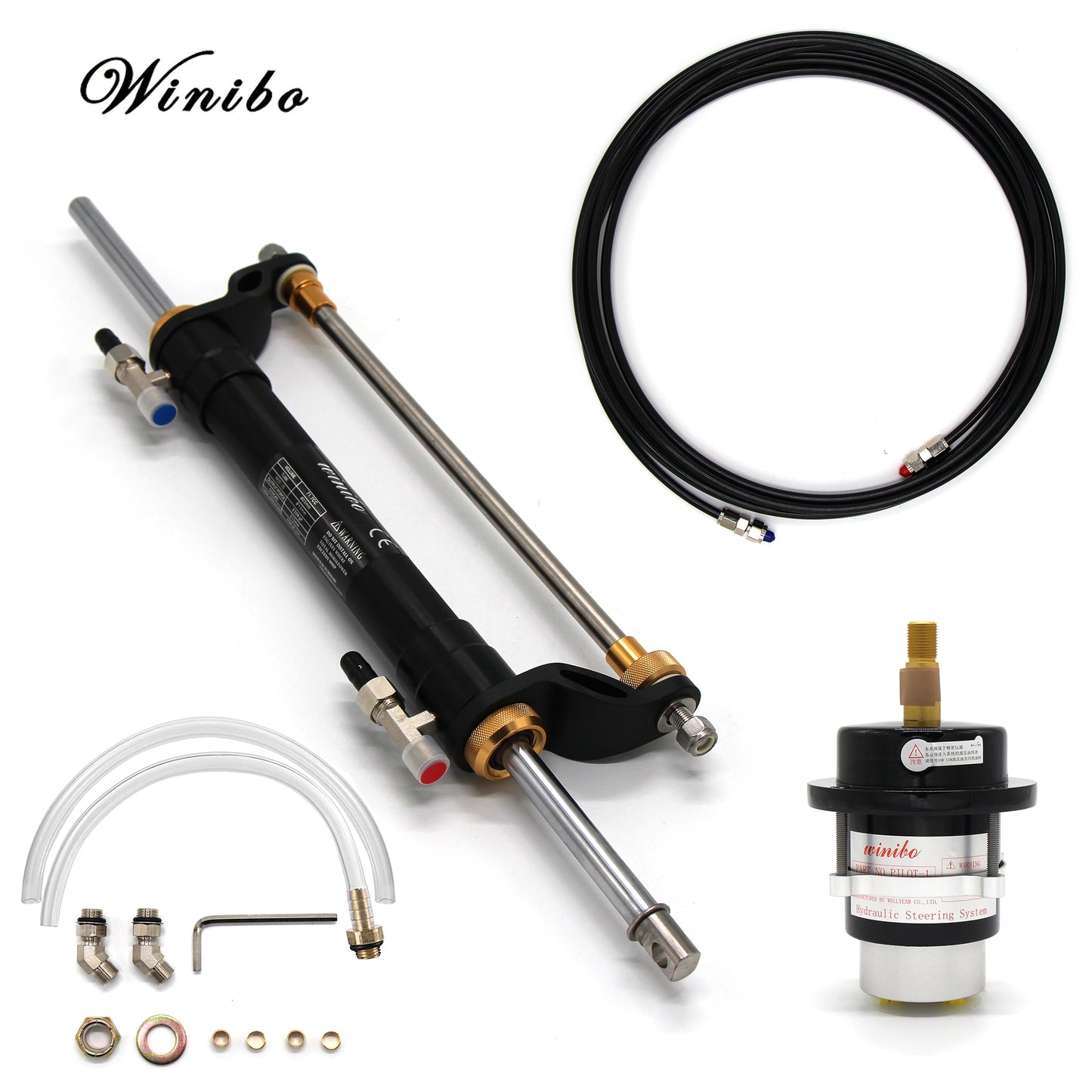

The product includes: oil pump, hydraulic cylinder, two hoses, kits and transparent injection tube, the hose is generally 8 meters long, (can be cut to any length you need, need to use the hose connector).Suitable for most lengths of boat.
4. What is the inside diameter of the 90HP steering wheel?
The size is 5/8“-18.
5. How to reduce steering speed?
You need to increase the volume of the hydraulic cylinder and decrease the volume of the pump. This will allow you to get more rpm's at lockup.
6. Is there a speed reducer?
No, but there are built-in check valves and safety valves. Check valves and safety valves keep the vessel stable in waves.
7. What is the capacity of the cylinder and pump? (90HP)
Cylinder capacity 71.1 cc
Pump displacement 13 cc
8. What is the number of rotations between locks?
About 4.5 circles .
