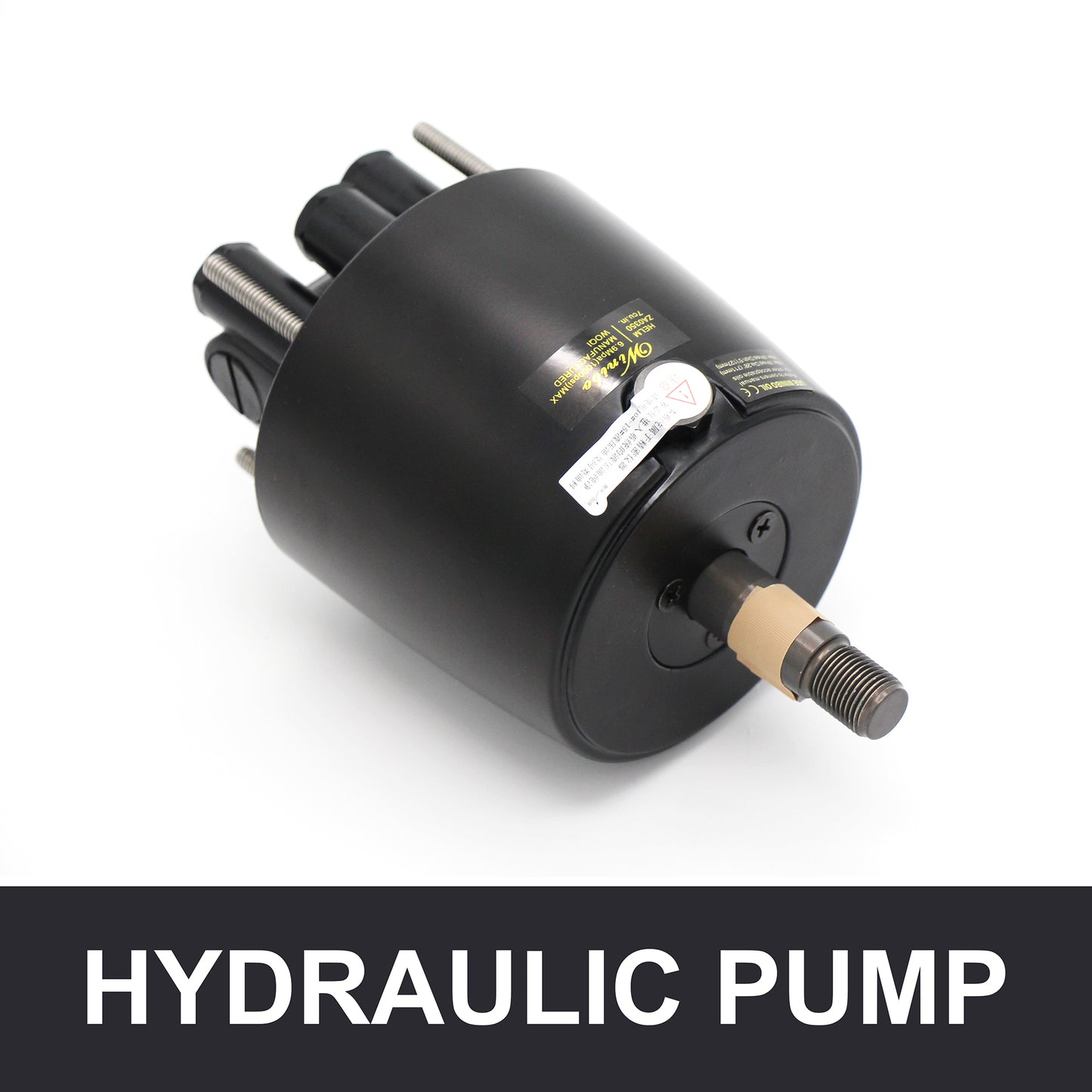

Winibo 18CC 23CC 27CC Hydraulic Steering Helm Pump for Marine Outboard Boat Up To 300HP

Description:

• The hydraulic pump has a ¾” tapered steering wheel shaft, guarantee a professional installation on most boats, and built-in locking valve, relief valve, ORB fittings.

• Adjustable O-ring (ORB) fittings simplify the installation process and will allow for simple reorientation of the fittings after installation. ORB fittings made in chrome plated copper.

• It comes with a built-in lock valve for positive rudder lock, designed to make your use more secure and stable. It also includes a relief valve to provide over-pressure protection for mechanical components and hydraulic hoses and fittings.

• Three capacity sizes for a variety of engine applications.

• Displacement per revolution27 ccPlunger Number7Max. Output69 kgf/cm3Applicable enginesup to 300hpTurns lock-to-lock5.5

For Model ZA0300

1. Pump(cc/rev): 18

2. Plumger number: 7

3. Max-pressure(kgf/cm3): 69

4. Application: up to 150hp

5. Weights: 3

For Model ZA0350

1. Pump(cc/rev): 23

2. Plumger number: 7

3. Max-pressure(kgf/cm3): 69

4. Application: up to 300hp

5. Weights: 3

For Model ZA0300-I

1. Pump(cc/rev): 27

2. Plumger number: 7

3. Max-pressure(kgf/cm3): 69

4. Application: up to 300hp

5.Weights: 3
